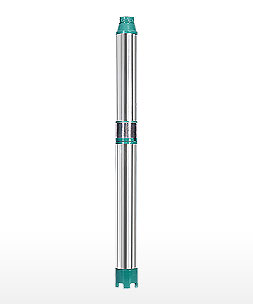

3" Submersible Pumpset ( 98mm Ø )
- Features
- Specifications
- Applications
- Download
- Proven & reliable design for critical conditions.
- State of the art design, delivers optimum performance and reliability in the toughest conditions.
- Mounting parameters and spline coupling are as per international NEMA standard.
- Rubber & bronze bearing provide for low friction and high wear resistance.
- Standard 2 pole, speed 2900 rpm motor.
- High pumping efficiency for reduced running costs.
- Lip seal and sand guard to prevent ingress of impurities into the motor.
- Suitable for 90 mm borewell.
- Noryl Bowl impeller set with S.S. neckring.
Material Of COnstruction | |
---|---|
Bowl | GF 30 Noryl With S.S 304 Neckring |
Impeller | GF 30 Noryl With S.S 304 Neckring |
Suction & Outlet | Fg 260 Grade Cast Iron With Epoxy Coating |
Motor & Pump Body | Stainless Steel |
Motor & Pump Shaft | S.S. 410 Or S.S. 431 |
Rotor | EC Grade Copper Conductors |
Winding | EC Grade Copper With Three Coated Polywrap |
Journal Bearing | LTB-4 |
Thurst Bearing | Carbon Vs. Self Aligh S.S. 420 Segments |
Housing, Connectio Plate & Base | FG 260 Grade Cast Iron With Epoxy Coating |
Technical Specifications | |
---|---|
H.P. Range | 1.5 H.P. to 5.0 H.P. Single Phase 1.5 H.P. to 7.5 H.P. Three Phase |
Operating head Range | 15 to 363 Metre |
Operating Discharge | 22 To 350 LPM / 1.32 To 21 m3/h |
Operating Voltage Range |
160-240 Volts single Phase |
Rated Volts / Frequency | 220 Volts +6%∓-15%/50 Hz in single Phase 415 Volts +6%∓-15%/50 Hz in Three Phase |
Max. Temp. of Liquid | 33°C |
Max. Permissible amount of sand in the water | 20 grams/cubic Metre |
# Due to continuous efforts in improvements, information furnished above is subject to change without notice
A combination of multistage centrifugal pump and submersible motor, is designed for applications like:
- Domestic water supply
- High rise buildings water supply
- Housing, complexes and bungalows water supply
- Gardens, farms and nurseries water supply
