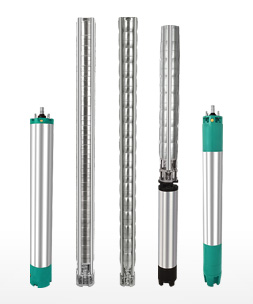

6" Submersible Pumpset ( 142mm Ø )
- Features
- Specifications
- Applications
- Download
- More than 300 models which is suitable in all type of water and soil and giving grater performance for years.
- Dynamically balanced rotating parts to ensure vibration free operation and long lasting bearing life.
- Mounting parameters and spline coupling are as per international NEMA standard.
- Improved hydraulic design with increased efficiency in each design radial flow & Mix flow.
- All casting components are epoxy coated and rotor is chrome plated for corrosion resistance.
- High quality materials and CNC machined components ensure more reliability and better performance.
- Internal surface of motor is coated with corrosion resistance fluid.
- Pumps are equipped with a reliable non-return valve (NRV) to reduce thrust load of back pressure
- All pump set are tested prior to dispatch as per IS standard
- Heavy duty German carbon thrust bearing is used
Material Of COnstruction | |
---|---|
Bowl | S.S 304 |
Impeller | S.S 304 |
Suction & Outlet | Fg 260 Grade Cast Iron With Epoxy Coating |
Motor & Pump Body | Stainless Steel |
Motor & Pump Shaft | S.S. 410 Or S.S. 431 |
Rotor | EC Grade Copper Conductors |
Winding | EC Grade Copper With Three Coated Polywrap |
Journal Bearing | LTB-4 |
Thurst Bearing | Carbon Vs. Self Aligh S.S. 420 Segments |
Housing, Connectio Plate & Base | FG 260 Grade Cast Iron With Epoxy Coating |
Technical Specifications | |
---|---|
H.P. Range | 3.0 H.P. to 5.0 H.P. Single Phase 3.0 H.P. to 40.0 H.P. Three Phase |
Operating head Range | 10 to 450 Metre |
Operating Discharge | 75 To 1380 LPM / 4.5 To 82.7 m3/h |
Operating Voltage Range |
160-240 Volts single Phase |
Rated Volts / Frequency | 220 Volts +6%∓-15%/50 Hz in single Phase 415 Volts +6%∓-15%/50 Hz in Three Phase |
Max. Temp. of Liquid | 33°C |
Max. Permissible amount of sand in the water | 20 grams/cubic Metre |
Method Of Starting For Three Phase | 3.0 H.P TO 7.5 H.P DOL 10 H.P To 40 H.P Star Delta |
# Due to continuous efforts in improvements, information furnished above is subject to change without notice
A combination of multistage centrifugal pump and submersible motor, is designed for applications like:
- Agriculture
- Domestic water supply
- High rise buildings water supply
- Housing, complexes and bungalows water supply
- Gardens, farms and nurseries water supply
