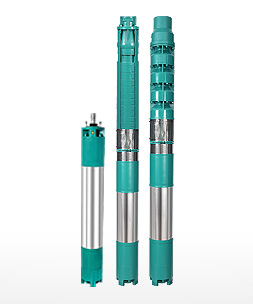

8" Submersible Pumpset ( 182mm Ø )

  • Long and heavy motor body having large volume of water inside to protect winding & maintain temperature and gives excellent efficiency.
  • More than 150 models in radial flow & mix flow for appropriate selection as per requirement.
  • Heavy duty carbo teflon thrust bearing used with german technology.
  • Dynamically balanced rotating parts to ensure vibration free operation and long lasting bearing life.
  • All casting components are epoxy coated and rotor is chrome plated for corrosion resistance.
  • High quality materials and CNC machined component ensure more reliability and better performance.
  • Internal surface of motor is coated with corrosion resistance fluid.
  • Pumps are equipped with a reliable non-return valve (NRV) to reduce thrust load of back pressure
  • All pump set are tested prior to dispatch as per IS standard
  • Customized product is available on request
Material Of COnstruction
Bowl FG 260 Grade Cast Iron With Rubber Nackring
Impeller S.S 410
Suction & Outlet Fg 260 Grade Cast Iron With Epoxy Coating
Motor & Pump Body Stainless Steel
Motor & Pump Shaft S.S. 410 Or S.S. 431
Rotor EC Grade Copper Conductors
Winding EC Grade Copper With Three Coated Polywrap
Journal Bearing LTB-4
Thurst Bearing Carbon Vs. Self Aligh S.S. 420 Segments
Housing, Connectio Plate & Base FG 260 Grade Cast Iron With Epoxy Coating
Technical Specifications
H.P. Range 15.0 H.P. to 75.0 H.P. Three Phase
Operating head Range 20 to 315 Metre
Operating Discharge 480 To 2160 LPM / 28.8 To 129.6 m3/h
Operating Voltage Range

300-440 Volts Three Phase

Rated Volts / Frequency 415 Volts +6%∓-15%/50 Hz in Three Phase
Max. Temp. of Liquid 33°C
Max. Permissible amount of sand in the water 20 grams/cubic Metre
Method Of Starting For Three Phase 15 H.P To 75 H.P Star Delta

# Due to continuous efforts in improvements, information furnished above is subject to change without notice

A combination of multistage centrifugal pump and submersible motor, is designed for applications like:

  • Agriculture
  • Domestic water supply
  • High rise buildings water supply
  • Housing, complexes and bungalows water supply
  • Gardens, farms and nurseries water supply
