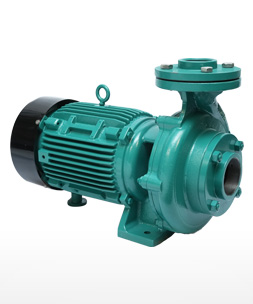

Centrifugal Monoblock Submersible Pumpset

Newly developed hydraulic & electric design make it most efficient & Reliable.
Motor windings are vacuum impregnated and laminations are non oriented silicon steel.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
All cast iron parts are made of close grained FG-260 grade which has life up to 15 years in clean water.
Fitted with thermal overload protector and double shielded ball bearing.
Able to run wide voltage band in single & three phase.

Technical Specifications
H. P. Range	1.5 H. P. to 3.0 H. P. Single Phase 1.5 H. P. to 3.0 H. P. Three Phase
Operating Head Range	6 to 28 Metres
Operating Discharge Range	190 to 1120 L. P. M. / 11.4 to 67.2 m³/h
Rated Volts / Frequency	220 Volts +6% & -15% / 50 Hz in SP 415 Volts +6% & -15% / 50 Hz in TP
Max. Temp. of Liquid	40°C
Max. Permissible amount of sand in the water	50 Gram/ Cubic Metre Water

# Due to continuous efforts in improvements, information furnished above is subject to change without notice

A Centrifugal monoblock pump set is designed for application like:
