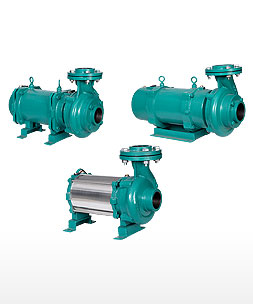

Horizontal Openwell Submersibles
- Features
- Specifications
- Applications
- Download
- Dynamically balanced rotating parts.
- Flatter efficiency curve for efficient operation.
- Non-overloading power characteristic for safety of motor.
- Replaceable wearing parts.
- No need of priming or foot valve.
- Water shower arrangement for surface application.
- Highly durable water cooled rewindable motor.
- Single shaft for pump & motor ensures permanent correct line alignment.
- Foundation & installation not required.
- Gun metal bush bearing.
- Noiseless operation.
- Maintenance free water lubricated bushes.
Material Of COnstruction | |
---|---|
Bowl | Fg 260 Grade Cast Iron With Epoxy Coating |
Impeller | Fg 260 Grade Cast Iron With Epoxy Coating |
Suction & Outlet | Fg 260 Grade Cast Iron With Epoxy Coating |
Motor & Pump Body | Fg 260 Grade Cast Iron With Epoxy Coating |
Motor & Pump Shaft | S.S. 410 |
Rotor | EC Grade Copper |
Winding | EC Grade Copper With Three Coated Polywrap |
Journal Bearing | LTB-4 |
Thurst Bearing | Carbon Vs. Self Aligh S.S. 420 Segments |
Housing, Connection Plate | FG 260 Grade Cast Iron With Epoxy Coating |
Technical Specifications | |
---|---|
H.P. Range | 3.0 H.P. to 5.0 H.P. Single Phase 3.0 H.P. to 10.0 H.P.Three Phase |
Maximum Head | Upto 61 Metres |
Maximum Discharge | 2150 LPM |
Operating Voltage Range |
200-415 Volts for Three Phase |
Standard Voltage Range | -15% +6% of Rated Volts |
Max. Start/Hour | 12 |
Max. Temp. of Liquid | 33°C |
Max. Permissible amount of sand in the water | 20 grams/cubic Metre |
Rated Volts/Frequency | 220 Volt/50 Hz for Single Phase 415 Volt/50 Hz for Three Phase |
# Due to continuous efforts in improvements, information furnished above is subject to change without notice
A combination of multistage centrifugal pump and submersible motor, is designed for applications like:
- Agriculture water supply
- Industries water supply
- Drip and Sprinclur water supply
- Lift irrigation water supply
