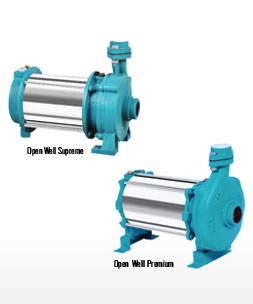

Horizontal Domestic Openwell Submersible Pumps

Salient Features

  • Dynamically balanced rotating parts.
  • Flatter efficiency curve for efficient operation.
  • Non-overloading power characteristic for safety of motor.
  • Replaceable wearing parts.
  • No need of priming or foot valve.
  • Water shower arrangement for surface application.
  • Highly durable water cooled rewindable motor.
  • Single shaft for pump & motor ensures permanent correct line alignment.
  • Foundation & installation not required.
  • Gun metal bush bearing.
  • Noiseless operation.
  • Maintenance free water lubricated bushes.
Technical Specifications
H.P. Range 0.5 H.P. to 2.0 H.P. Single Phase
1.0 H.P. to 2.0 H.P. Three Phase
Maximum Head Upto 35 Metre
Max. Discharge 500 LPM
Operating Voltage Range 140-240 Volts
Standard Voltage Range -15% +6%; of Rated Volts
Max. Start/Hour 12
Max. Temp. of Liquid 33°C
Max. Permissible amount of sand in the water 20 grams/cubic Metre
Rated volts/ Frequency 220 Volt/50 Hz for Single Phase
415 Volt/50 Hz for Three Phase

# Due to continuous efforts in improvements, information furnished above is subject to change without notice

Application

  • Home.
  • Hotels.
  • Gardening.
  • Fountains.
  • Industries.
  • High rise buildings.
  • Multistoreid Apartments.


Domestic Openwell Horizontal Pumps Available Range

  • Domestic Openwell Horizontal S.S. Submersible Pump Set
  • Domestic Openwell Vertical S.S. Submersible Pump Set
